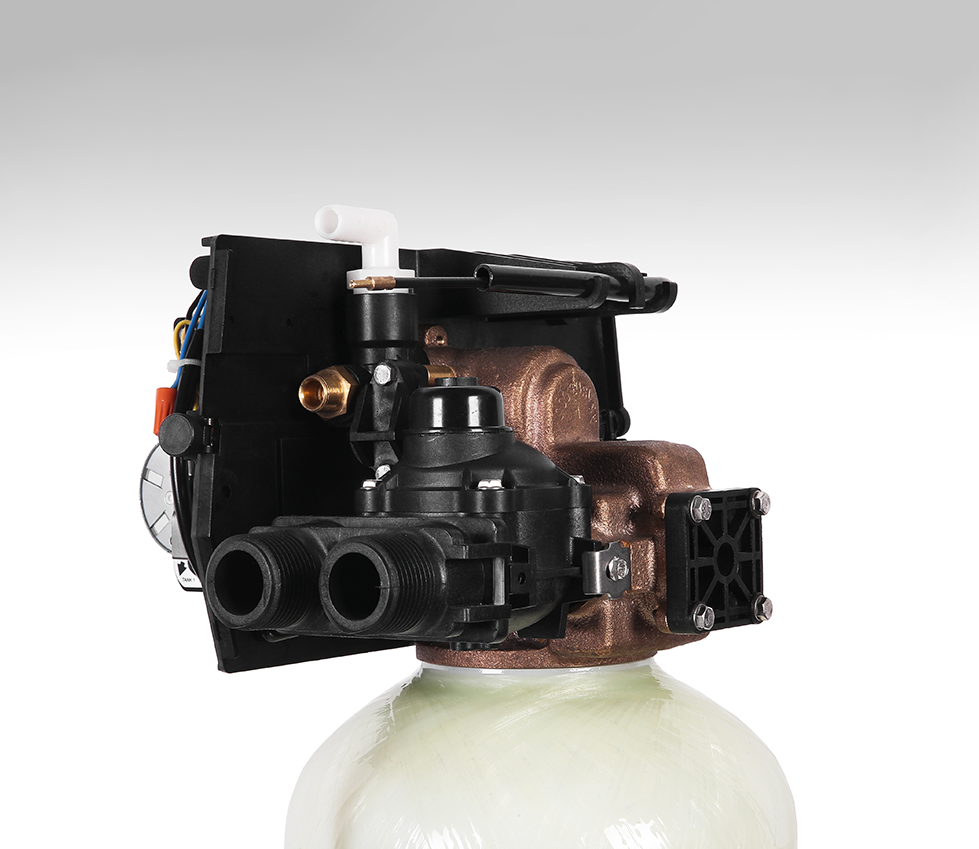

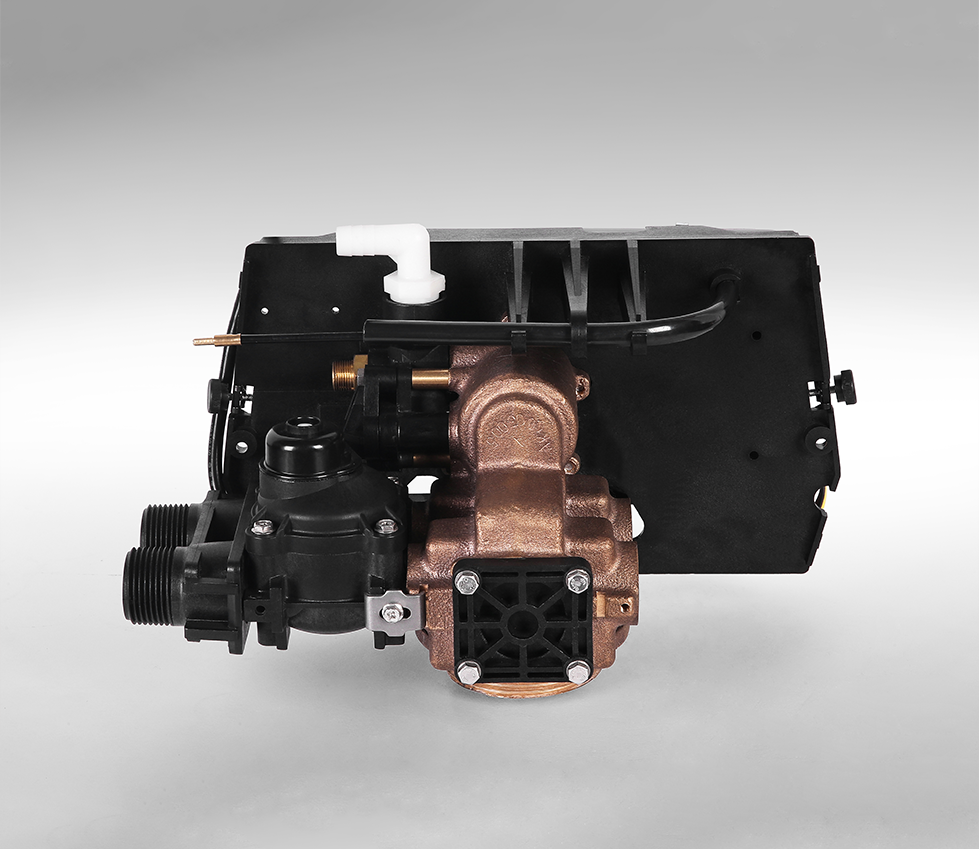

9000 Single-Valve Dual-Tank System
The following content is for reference only. In case of any discrepancy with the actual situation, the actual situation shall prevail.
| Technical characteristicis | |
| Valve Body Material | Brass |
| Inlet/Outlet Pipe Size | 1” or 3/4" |
| Flow range (0.35 Mpa inlet water pressure) | |
| Continue water yield (pressure drop 0.1 Mpa) | 4.77m3/h |
| Peak water yield (pressure drop 0.175 Mpa) | 6.36m3/h |
| Resistance coefficient Cv | 5.1 |
| Backwash flow (pressure drop 0.175 Mpa) | 8.5gpm |
| Regeneration | |
| Downflow/Float&Upflow | Downflow |
| Program adjustment | The time of all regeneration steps are adjustable |
| Maximum regeneration time | 164 min or 82min |
| No hard bypass | Optional |
| Accuracy of flow meter 1” | 0.159 - 9.09m³/h±5% |
| Accuracy of flow meter 3/4” | 0.056 - 3.4m³/h±5% |
| Range of flow meter 1” | Standard 1.17 - 19.96m³ Enlarged 5.87 - 99.81 m³ |
| Range of flow meter 3/4” | Standard 0.47 - 8m³ Enlarged 2.3 - 40 m³ |
| Main dimensions | |
| Diameter of center pipe | 1”(1.05)0.D. |
| Diameter of drain pipe | 3/4” |
| Diameter of brine pipe | 3/8”(1/2”) |
| Diameter of tank joint | 2 1/2”-8 |
| Valve height (from body top to tank interface) | 6-1/2” |
| Note: inlet water pressure is 40 psi (0.28mpa), and renewable salt consumption is 160 grams of salt every litre resin | |
| Power parameters | 24v,110v.220v-50hz.60hz |
| Design pressure | 2.1mpa |
| Working pressure | 0.14-0.84mpa |
| Working temperature | 34°-110°F |
| Working program | Program time (min) |
| Backwash | 10min |
| Brine suction and exchange | 60min |
| Fast rinse | 10min |
| Brine tank refill | 10min |
| Running | |
