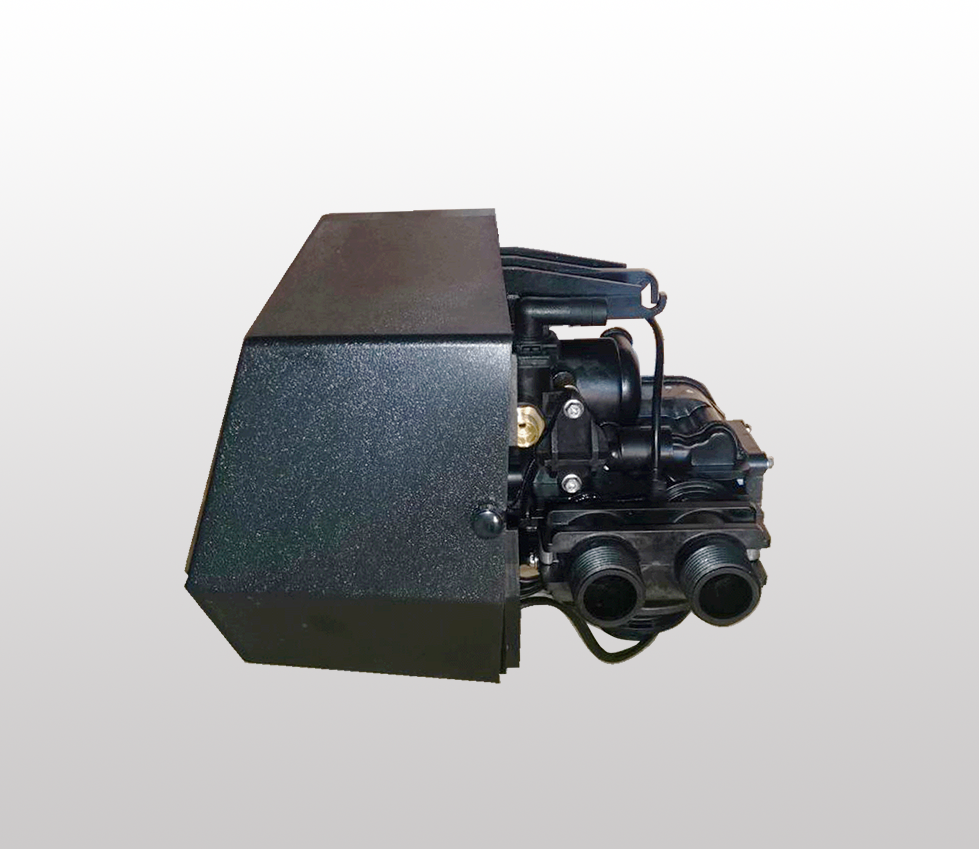

9100 (Single-valve Dual-tank System)
The following content is for reference only. In case of any discrepancy with the actual situation, the actual situation shall prevail.
| Valve Body Material | NORYL |
| Inlet/Outlet Pipe Size | 3/4",1",1-1/4" |
| Working pressure | 0.14-0.84MPa |
| Working temperature | 34°-110°F（1°-43°C） |
| Power parameters | 24V，110V，220V-50Hz，60Hz |
| Main dimensions | |
| Diameter of center pipe | 1.05"O.D. |
| Diameter of drain pipe | 1/2"NPT |
| Diameter of brine pipe | 1600-3/8" |
| Diameter of tank joint | 2-1/2"-8NPSM |
| Valve height (from body top to tank interface) | 7.3" |
| Softening and Filtration Device | |
| Softening | 6"-16" |
| Other Reference Information | |
| Regeneration System | 1600 |
| Power Supply Parameters | 24v,110v,220v-50Hz,60Hz |
| Maximum Power | 8.9w |
| Estimated Shipping Weight | Motor Type：14.5lbs |
| SE Type：12lbs | |
| Pressure Parameters | Design pressure：2.1MPa |
| Working pressure：0.14-0.84MPa | |
| Operating Temperature | 34"-110"F(1"-43"C) |
