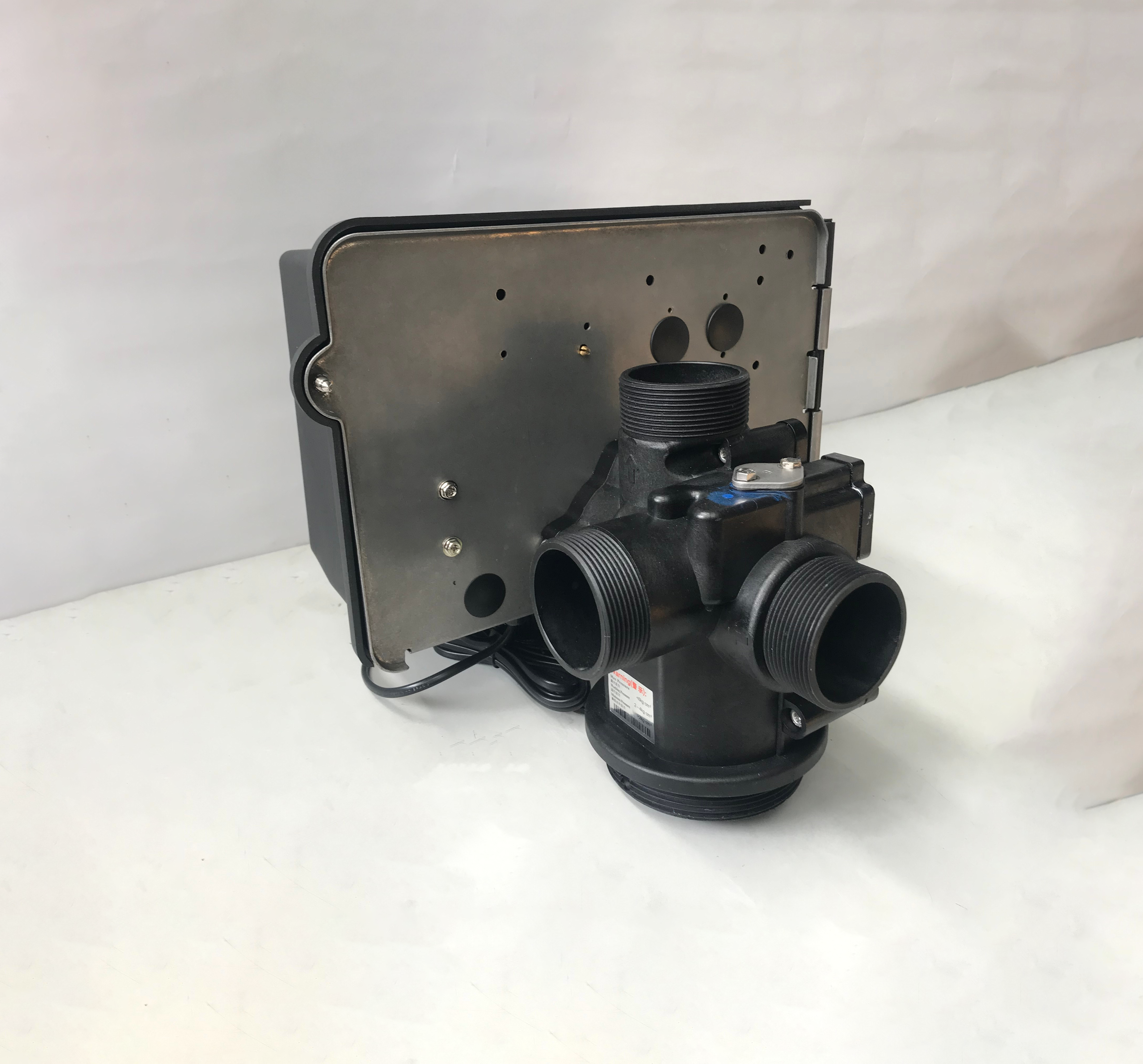

NY3150 Auto multi-way valve
The following content is for reference only. In case of any discrepancy with the actual situation, the actual situation shall prevail.
| Technical characteristicis | |||||||
| Valve Body Material | NORYL | ||||||
| Inlet/Outlet Pipe Size | 2” | ||||||
| Flow range (0.35 Mpa inlet water pressure) | 4-20m³/h | ||||||
| Continue water yield (pressure drop 0.1 Mpa)） | 21.5m³/h | ||||||
| Peak water yield (pressure drop 0.175 Mpa) | 24.8m³/h | ||||||
| Resistance coefficient Cv | 13.2 | ||||||
| Backwash flow (pressure drop 0.175 Mpa) | 18.7m³/h | ||||||
| Regeneration | |||||||
| Downflow/Float&Upflow | Either of them | ||||||
| Program adjustment | The time of all regeneration steps are adjustable | ||||||
| Maximum regeneration time | 164 min | ||||||
| No hard bypass | Optional | ||||||
| Main dimensions | |||||||
| Diameter of center pipe | 1.5” ID. | ||||||
| Diameter of drain pipe | 2” | ||||||
| Diameter of brine pipe | 3/8”(1/2”) | ||||||
| Diameter of tank joint | 4” -8UN | ||||||
| Valve height (from body top to tank interface) | 8-1/2" | ||||||
| Note: inlet water pressure is 40 psi (0.28mpa), and renewable salt consumption is 160 grams of salt every litre resin | |||||||
| Power parameters | 24v,110v.220v-50hz.60hz | ||||||
| Design pressure | 2.1Mpa | ||||||
| Working pressure | 0.14-0.84Mpa | ||||||
| Working temperature | 34°-110°F | ||||||
| Working program | Program time (min) | Up-flow regeneration | Program time (min) | ||||
| Backwash | 10min | Brine suction and exchange | 60min | ||||
| Brine suction and exchange | 60min | Backwash | 10min | ||||
| Fast rinse | 10min | Fast rinse | 10min | ||||
| Brine tank refill | 10min | Brine tank refill | 10min | ||||
| Running | Running | ||||||
| Configuration table | |||||||
| Item | Model of control valve |
Tank size (diameter in mm) | Resin filling volume (volume in L) |
Salt tank size (volume in L) |
Softened water (m³/h) | Filtration water (m³/h) | |
| 1 | 3150 | 750 | 500 | 500 | <13<> | <6.6<> | |
| 2 | 3150 | 900 | 900 | 800 | <19<> | <9.5<> | |
| 3 | 3150 | 1000 | 1075 | 1000 | <20<> | <12<> | |
| 4 | 3150 | 1200 | 1500 | 2000 | <21.5<> | <17<> | |
