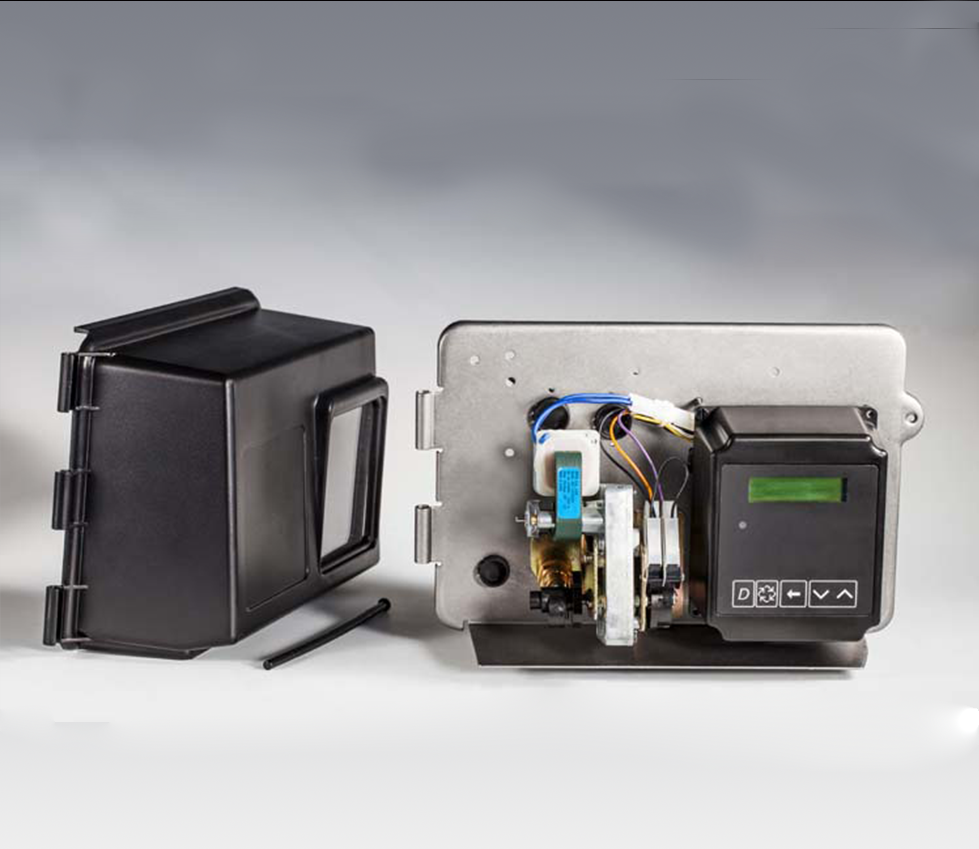

NY2750-4

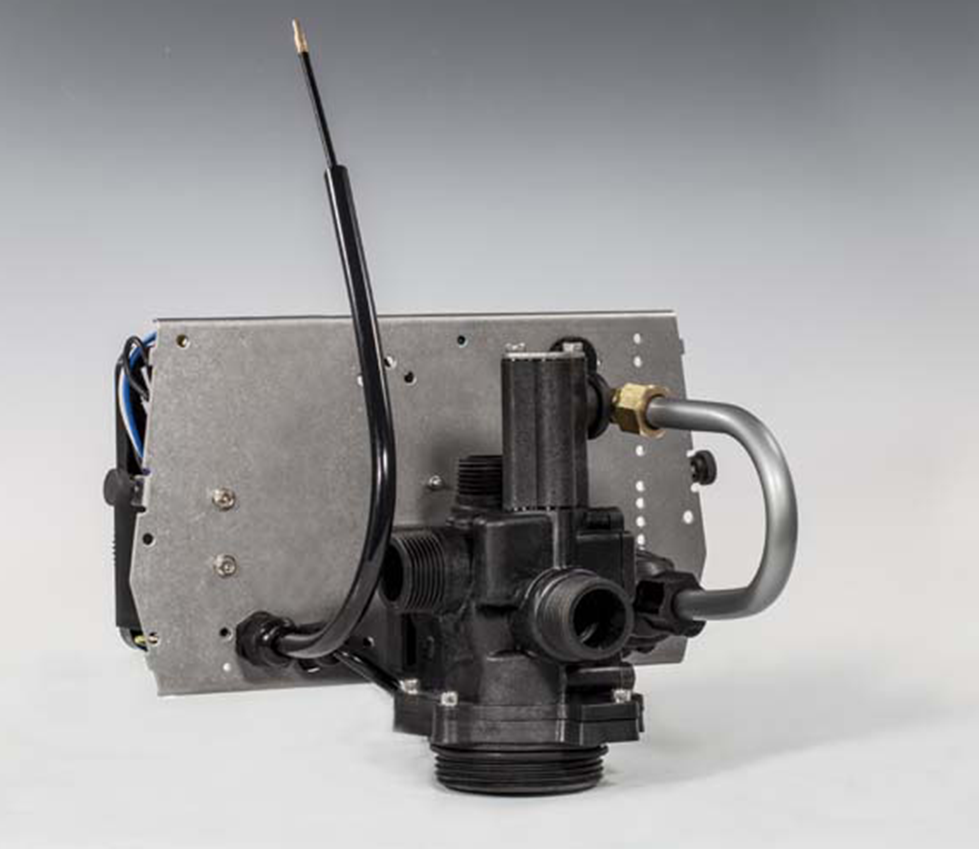

NY2750-5

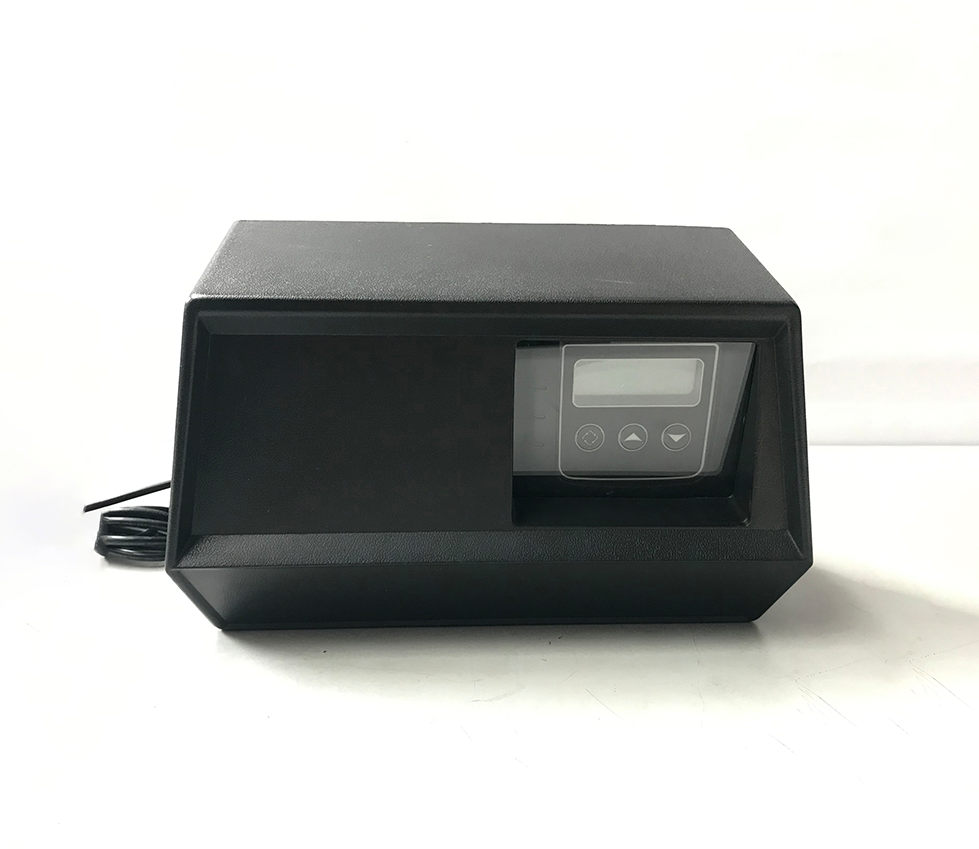

NY2750-3
NY2750-2
넳 넲

Auto multi-way valve

The following content is for reference only. In case of any discrepancy with the actual situation, the actual situation shall prevail.



Technical characteristicis
Valve Body Mater NORYL
Inlet/Outlet Pipe Size 1”
Flow range (0.35 Mpa inlet water pressure) 4-8m³/h
Continue water yield (pressure drop 0.1 Mpa)） 6.5m³/h
Peak water yield (pressure drop 0.175 Mpa) 8.5 m³/h
Resistance coefficient Cv 5.2
Backwash flow (pressure drop 0.175 Mpa) 6 m³/h
Regeneration
Down-flow/up-flow Either of them
Program adjustment The time of all regeneration steps are adjustable
Maximum regeneration time 99 minutes each program
No hard bypass Optional
Main dimensions
Diameter of center pipe 1”(1.05)0.D.
Diameter of drain pipe 3/4”
Diameter of drain pipe 3/8”(1/2”)
Diameter of tank joint 2.5”-8
Valve height (from body top to tank interface) 7”
Note: inlet water pressure is 40 psi (0.28mpa), and renewable salt consumption is 160 grams of salt every litre resin
Power parameters 24v,110v.220v-50hz.60hz
Design pressure 2.1mpa
Working pressure 0.14-0.84mpa
Working temperature 34°-110°F
Working program Program time (min) Up-flow regeneration Program time (min)
Backwash 10 min Brine tank refill 60 min
Brine suction and exchange 60 min Backwash 10 min
Fast rinse 10 min Fast rinse 10 min
Brine tank refill 10 min Brine tank refill 10 min
Running   Running
Configuration table
Item Model of
control valve		 Tank size (diameter in mm) Tank size (diameter in mm) Resin filling volume(volume in L) Softened water (m³/h) Filtration water (m³/h))
1 2750 400 150 200 <3.7<> <1.9<>
2 2750 500 200 200 <5.9<> <3<>
3 2750 600 375 500 <7<> <4.2<>
4 2750 750 500 500 <7<> /
